High-Rate · Instant Burst
Instant Burst.
Zero Compromise.

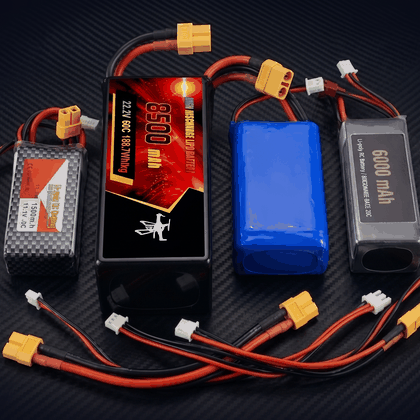

High-C pouch-cell packs for UAVs — explosive instantaneous power with smart BMS telemetry over CAN / I²C.
Technical
Specifications
- Configuration
- 6S1P (custom 4S–12S)
- Nominal voltage
- 22.2 V
- Continuous discharge
- 80C
- Pulse discharge
- 150C (≤ 10 s)
- Cell
- High-rate Li-Po pouch
- Energy density
- up to 270 Wh/kg
- Telemetry
- CAN bus / I²C · per-cell V & T
- Connector
- XT90 / AS150 / custom
- Operating temp
- −20 °C to 60 °C
- Insulation
- High-temp carbon-fiber wrap
Where it fits
Applications
FPV & Cinematic Drones
Instant throttle response for aggressive maneuvers.
Agricultural Spraying UAV
Sustained high current for heavy payload lift.
Industrial & Survey UAV
CAN telemetry integrates directly with flight controllers.
eVTOL & Heavy Lift
Series-scalable packs for high-voltage propulsion.
Process
Engineering & Testing
- 01
Pulse Load
150C pulse-discharge profiling.
- 02
Thermal Imaging
IR scan under maximum continuous draw.
- 03
Nail Penetration
Single-cell puncture containment.
- 04
Telemetry Validation
CAN/I²C accuracy across the full SoC range.
Questions
FAQ
How long does the 150C pulse rating last?
The pulse rating is specified for bursts up to 10 seconds; continuous draw is rated separately at 80C. We tune both to your duty cycle.
Can the BMS talk to my flight controller?
Yes — we expose per-cell voltage, pack temperature and current over CAN or I²C, with a register map matched to your autopilot.
What about transport of high-energy packs?
All packs are UN38.3 certified and shipped at storage SoC with hazmat-compliant documentation.
Custom S-count and connectors?
We build 4S–12S configurations with XT90, AS150 or your specified connector and lead lengths.
