High-Rate · Instant Burst
Instant Burst.
Zero Compromise.
High-C pouch-cell packs for UAVs — explosive instantaneous power with smart BMS telemetry over CAN / I²C.
Technical
Specifications
- Configuration
- 6S1P (custom 4S–12S)
- Nominal voltage
- 22.2 V
- Continuous discharge
- 80C
- Pulse discharge
- 150C (≤ 10 s)
- Cell
- High-rate Li-Po pouch
- Energy density
- up to 270 Wh/kg
- Telemetry
- CAN bus / I²C · per-cell V & T
- Connector
- XT90 / AS150 / custom
- Operating temp
- −20 °C to 60 °C
- Insulation
- High-temp carbon-fiber wrap
Trust

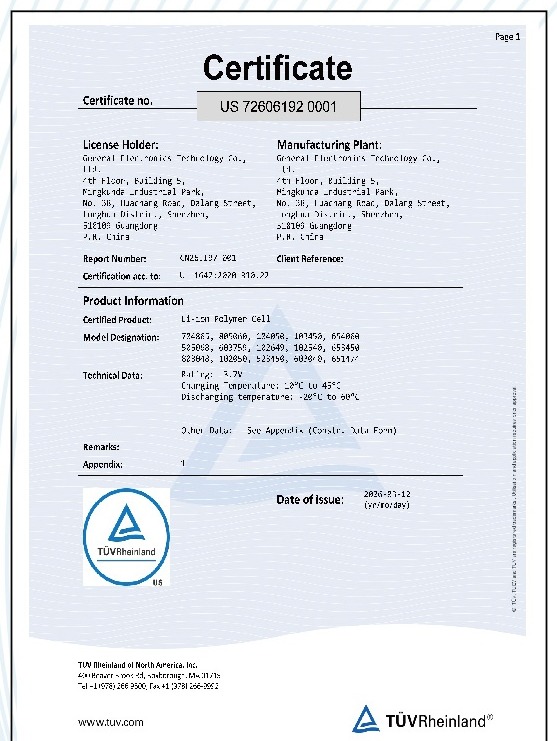

Certifications
Independently tested and certified to international safety and quality standards.
-

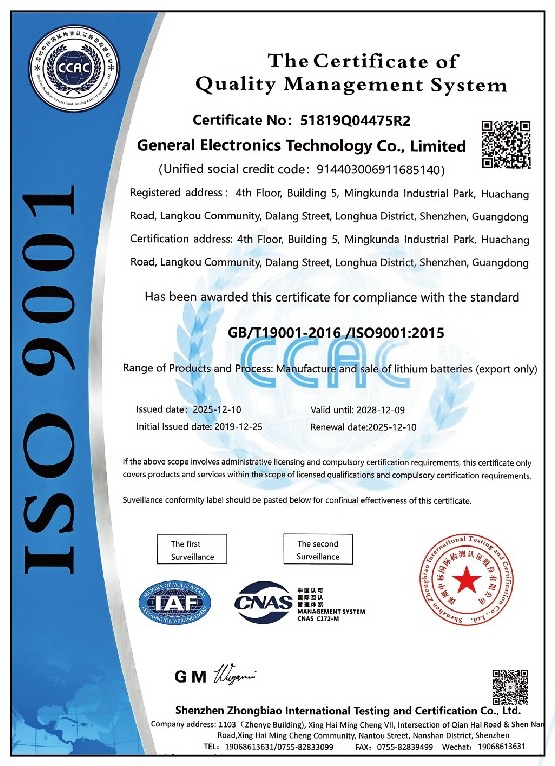

ISO 9001
-

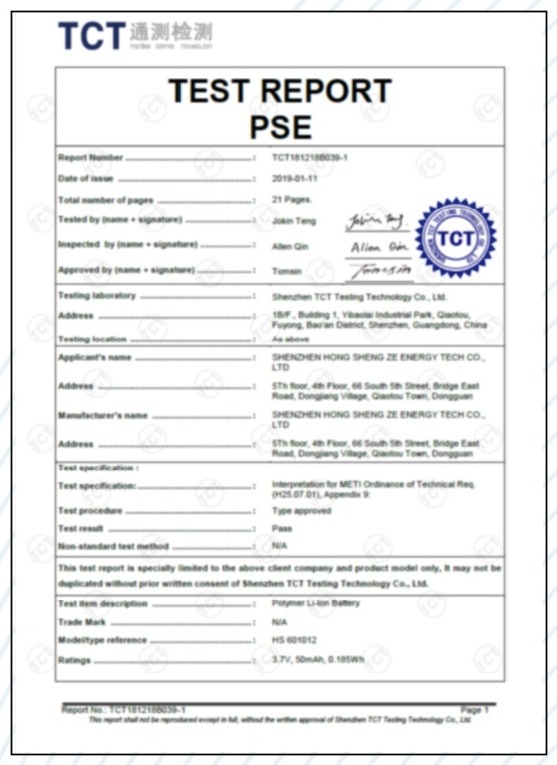

PSE
-

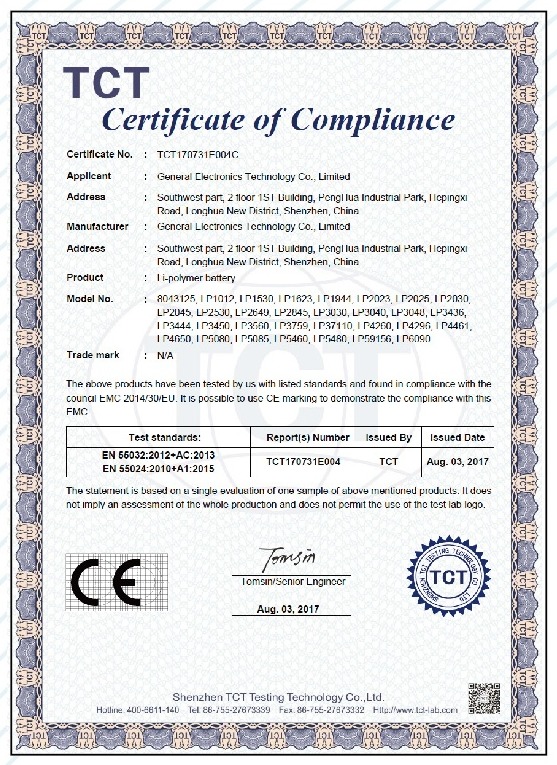

CE
-

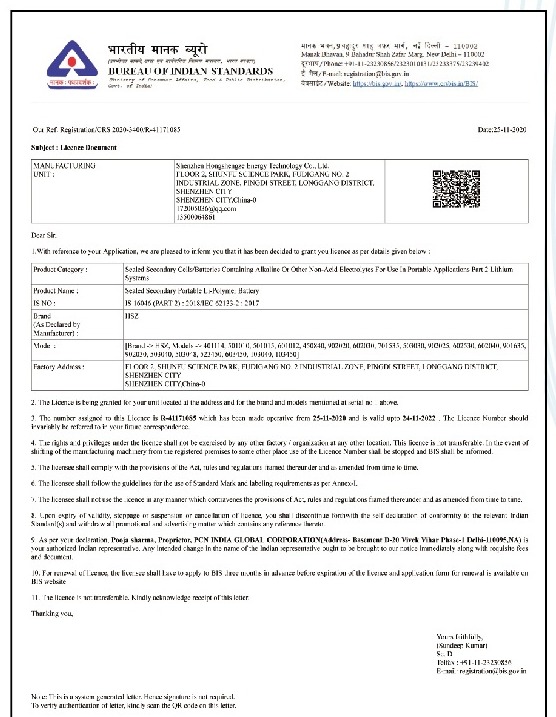

BIS
-
UL
-

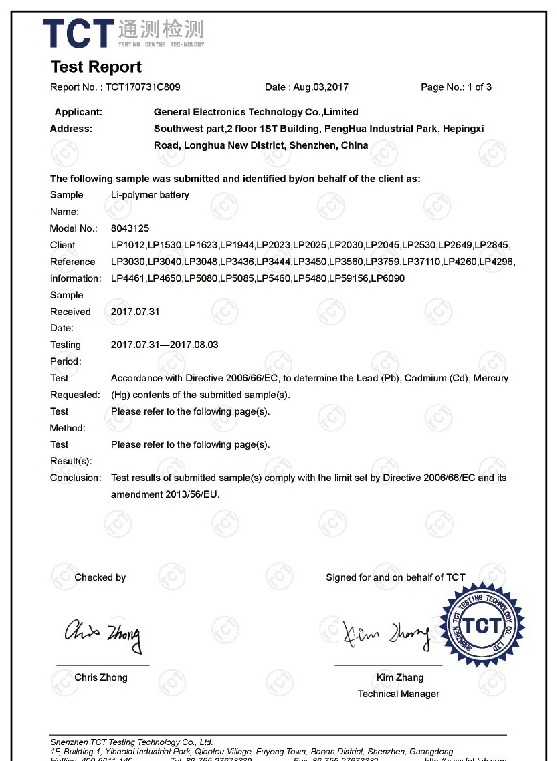

RoHS
-

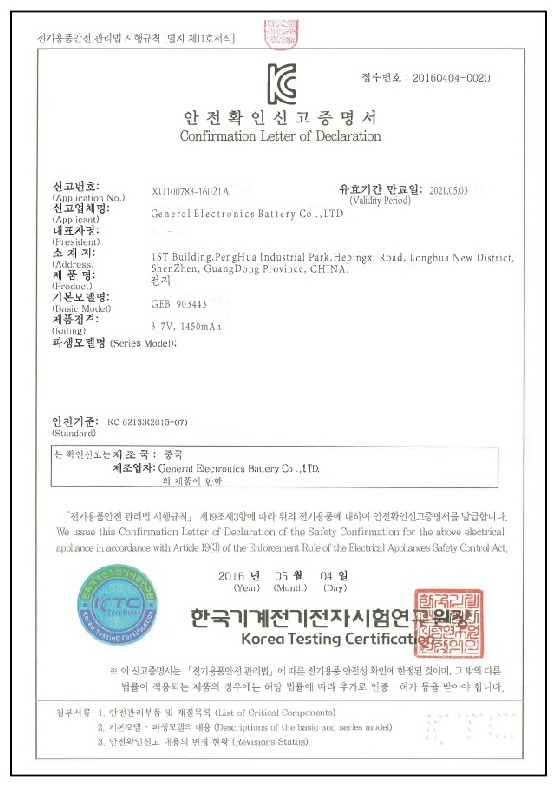

KC
-

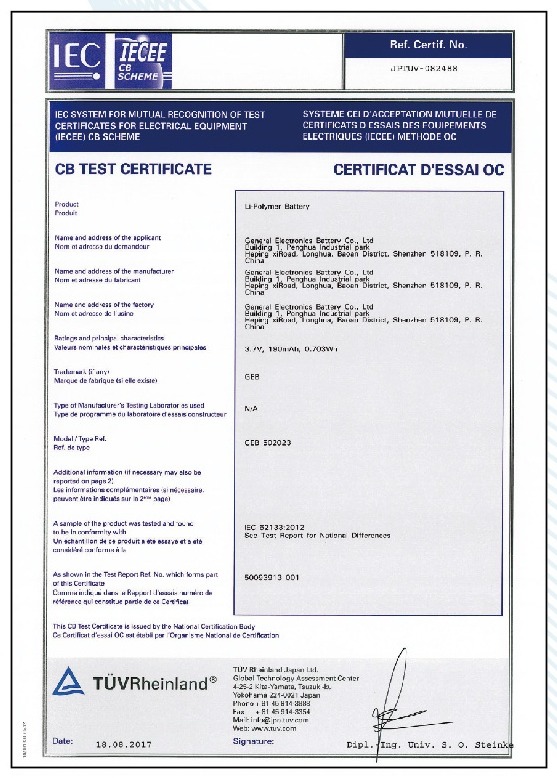

CB
-

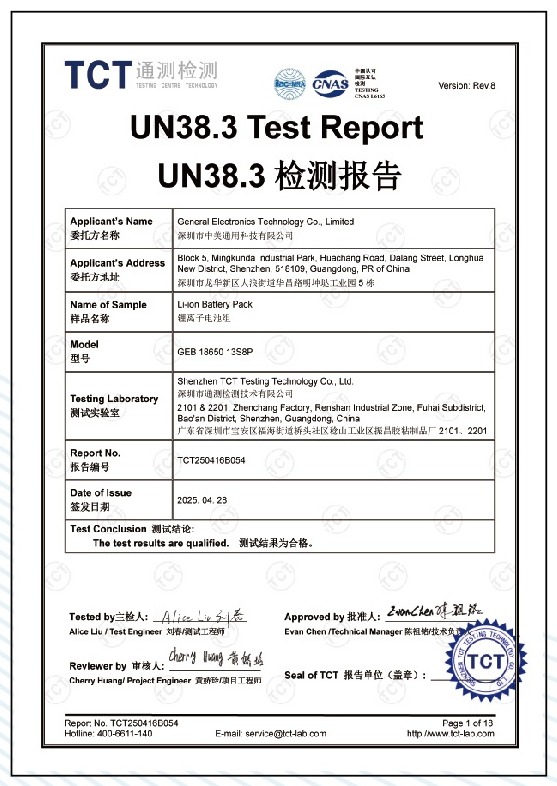

UN 38.3

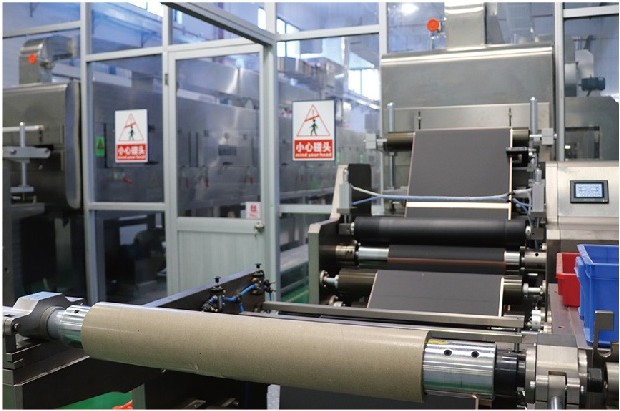

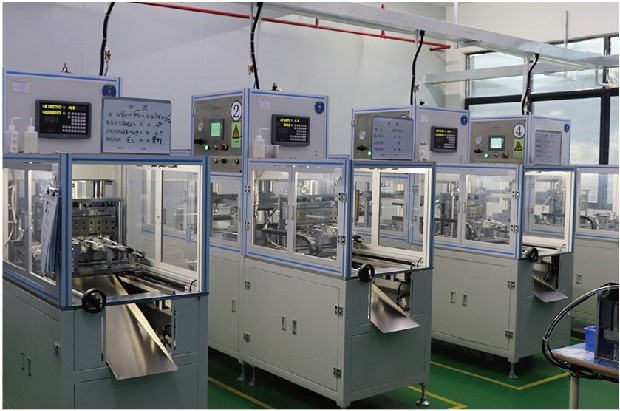

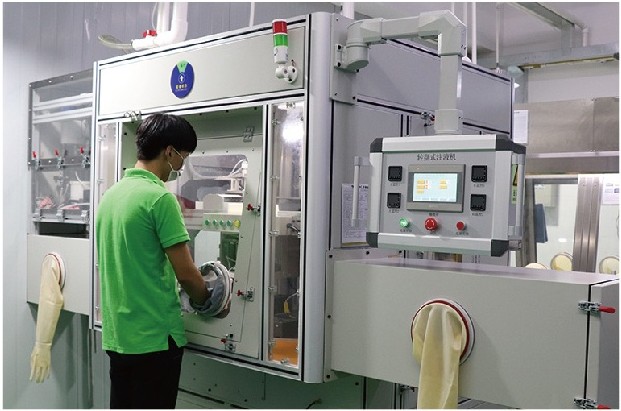

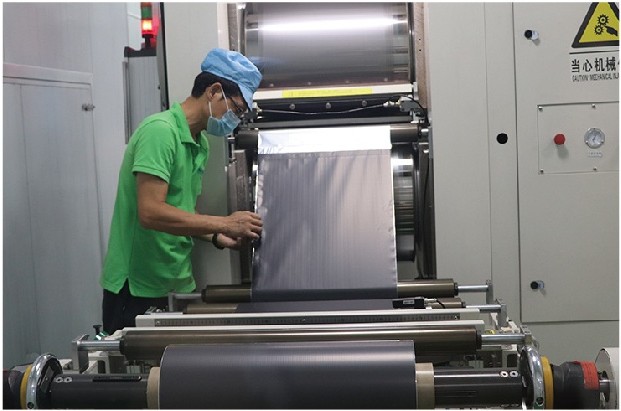

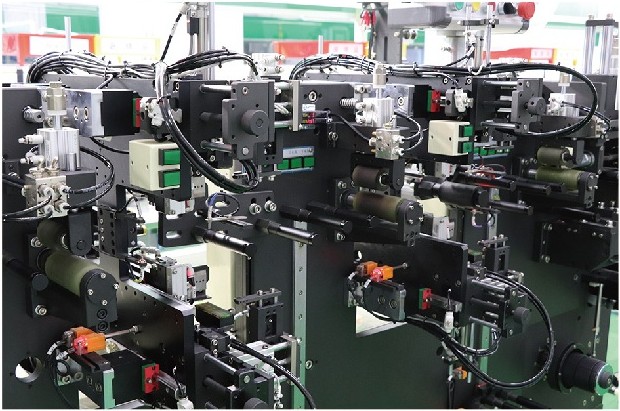

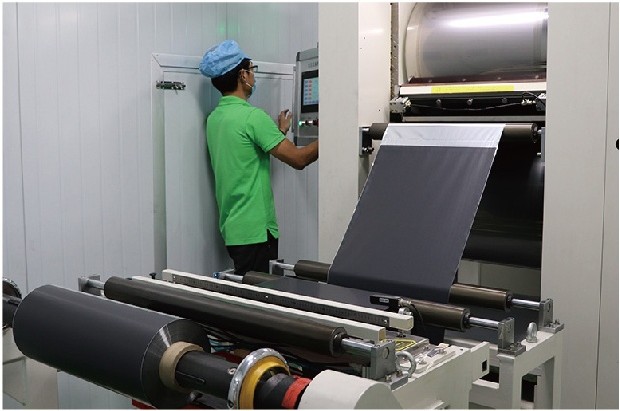

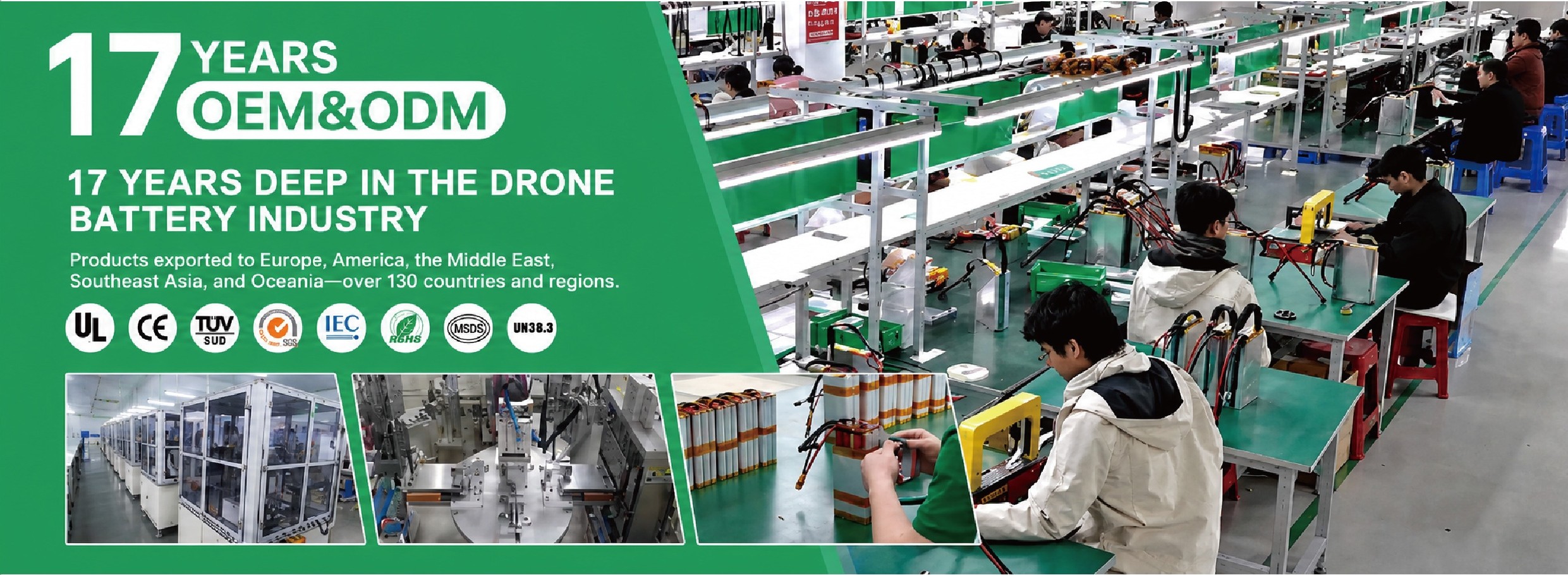

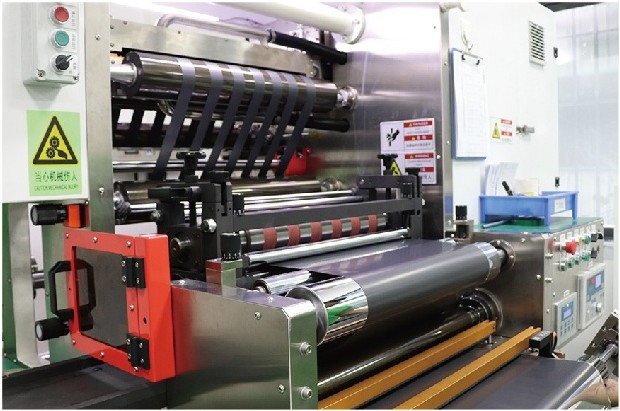

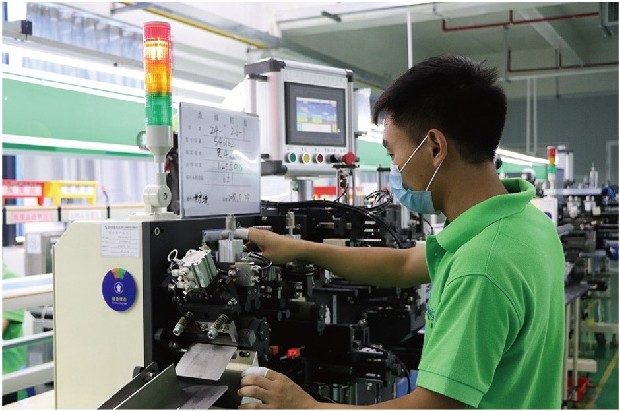

Manufacturing
Our Factory
Vertically integrated cell assembly, BMS production and automated testing under one roof.
Battery Supplier
High-Rate & Professional UAV Battery Solutions
Application
Agricultural Drone Battery
Capacities: 16000 / 40000 / 66000 mAh
Application
UAV Multirotor Battery
Capacities: 9000 / 10000 / 12000 mAh

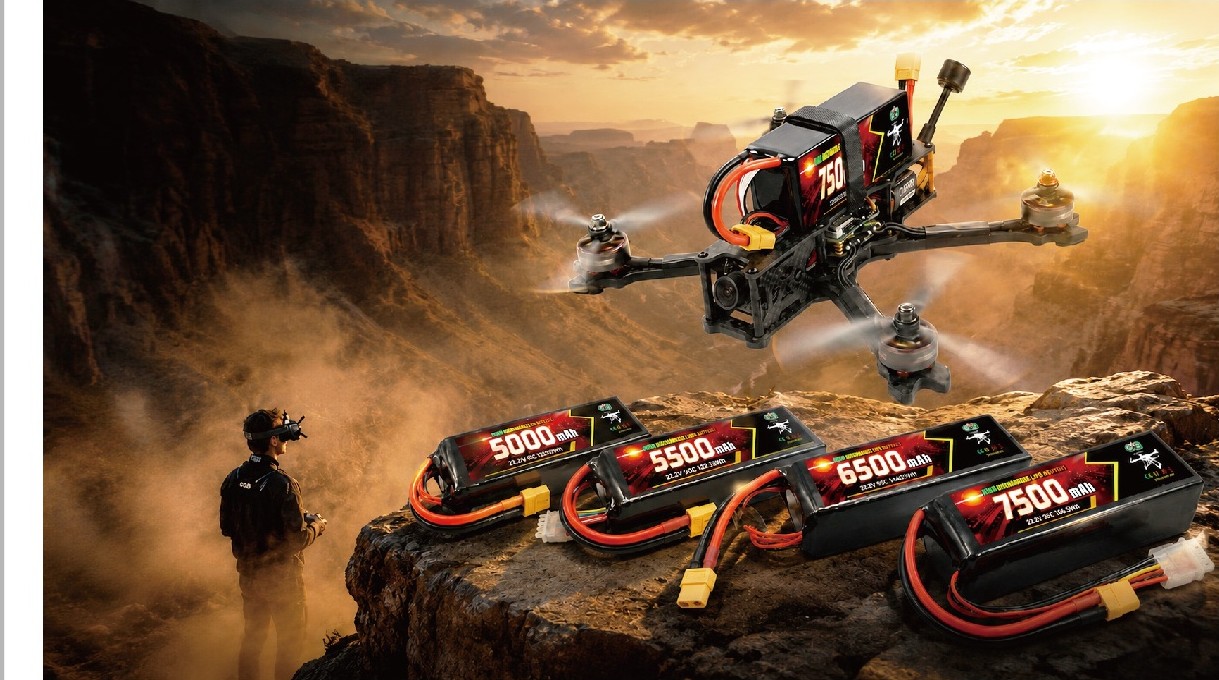

Application
FPV Drone Battery
Capacities: 5000 / 5500 / 6500 / 7500 mAh
Company Profile
About Us
Founded in 2009 and located in Shenzhen, Guangdong Province, China, MioGoods Technology Co., Ltd. is a high-tech enterprise specializing in the research, development, production, and sales of FPV, DRONE and high-rate polymer lithium battery cells and packs with high voltage. The company boasts a highly qualified professional R&D team led by a battery expert who returned from the United States. The team possesses strong technical capabilities, bringing together numerous experienced engineers and professional product designers. We are equipped with advanced production and testing equipment and have a comprehensive product marketing and after-sales service management system. Furthermore, we will continue to uphold the philosophy of "customers first," committed to providing high-value products, rapid delivery, strict quality control, and excellent customer service.
Founded in
2009
17 years of industry experience
Production staff
+200
Rich production experience
Plant area
6000m²
Large production plant
Daily production
150,000
On-time delivery
MioGoods Technology Co., Ltd
- 86-755-81762723 / 81762725 / 81762726
- [email protected]
- www.miogoods.com / mio.en.alibaba.com
- 4th Floor, Building 5, Mingkunda Industrial Park, No. 38 Huachang Road, Dalang Street, Longhua District, Shenzhen, Guangdong, China
Product Description
Professional Drone Battery Solutions
We specialize in high-performance drone battery customized services for more than 10 years, with deep expertise across various UAV and multirotor applications. Our dedicated engineering team designs and manufactures smart batteries for industrial, agricultural, and long-range missions, delivering safety and exceptional flight time to the global drone ecosystem.

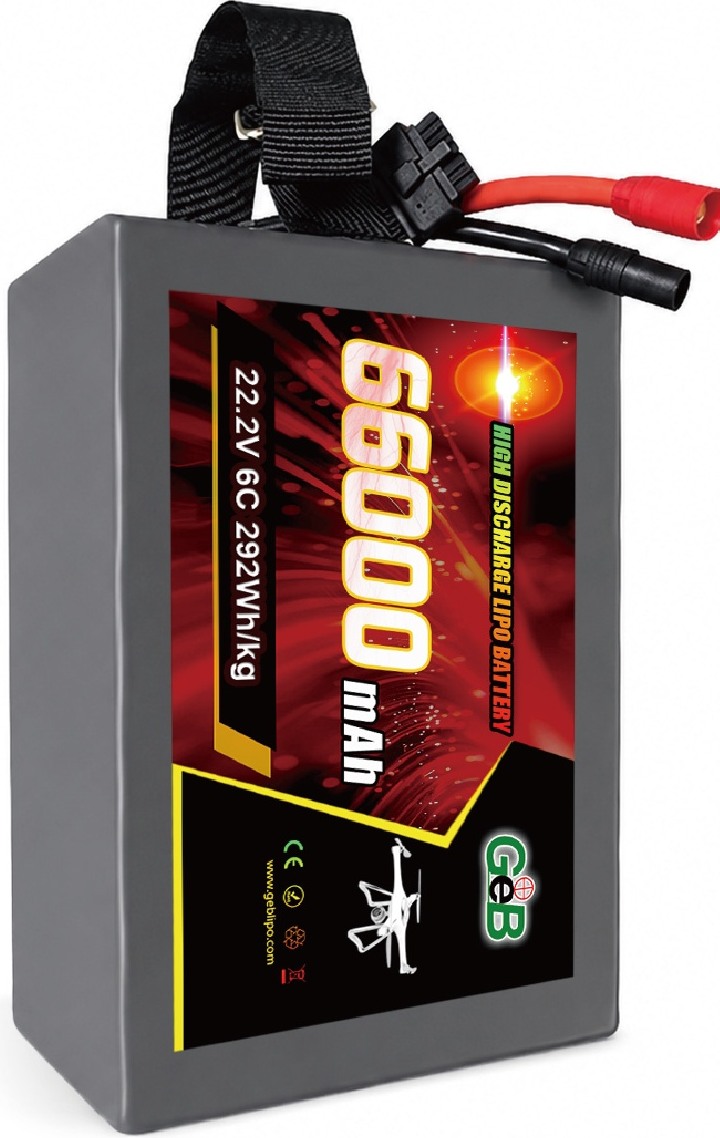

66000 mAh High-Discharge LiPo
- Model
- 22.2V 6C LiPo Battery
- Capacity
- 66000mAh
- Power
- 1465.2Wh
- Weight
- 5015g
- Size
- 128*92*220mm

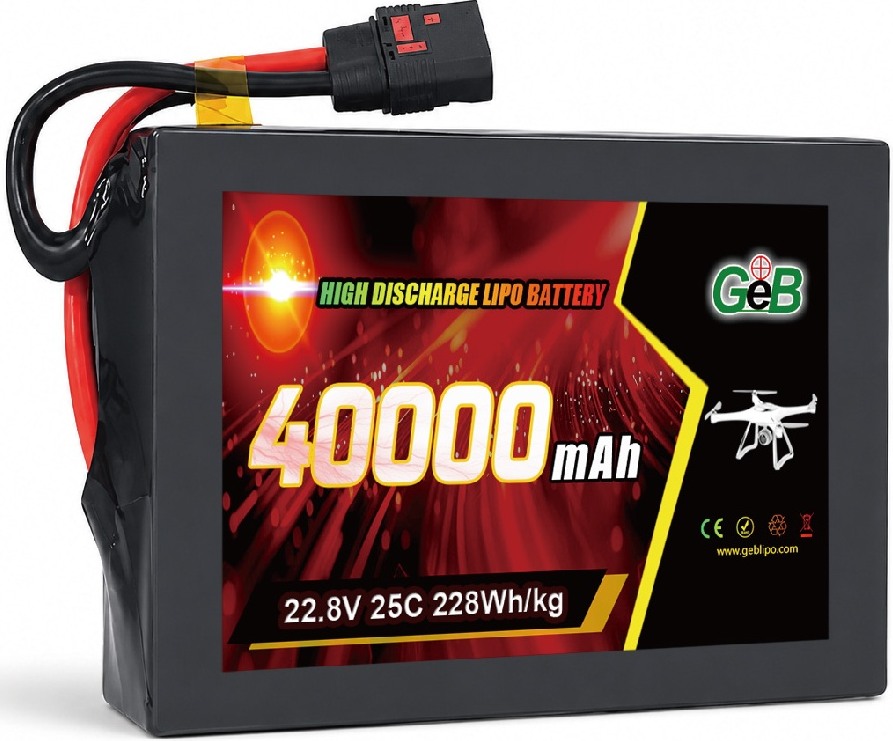

40000 mAh High-Discharge LiPo
- Model
- 22.8V 25C LiPo Battery
- Capacity
- 40000mAh
- Power
- 592Wh
- Weight
- 2586g
- Size
- 244*120*42mm
Battery Lineup
High-Discharge LiPo Range

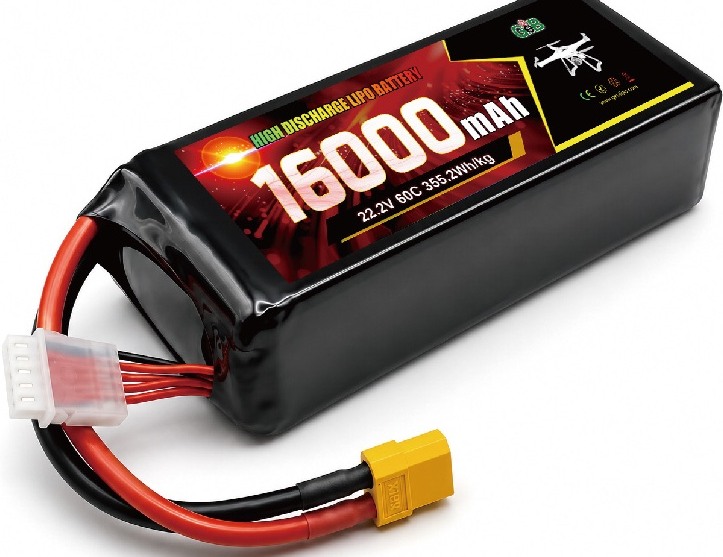

16000 mAh High-Discharge LiPo
- Model
- 22.2V 60C LiPo Battery
- Capacity
- 16000mAh
- Power
- 355.2Wh
- Plug
- XT90-S plug
- Weight
- 1953g
- Size
- 66*74*180mm

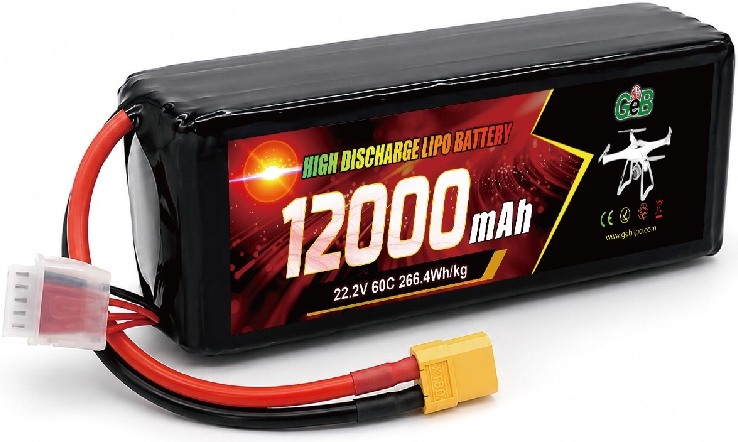

12000 mAh High-Discharge LiPo
- Model
- 22.2V 60C LiPo Battery
- Capacity
- 12000mAh
- Power
- 266.4Wh
- Plug
- XT90-S plug
- Weight
- 1554g
- Size
- 52*74*180mm

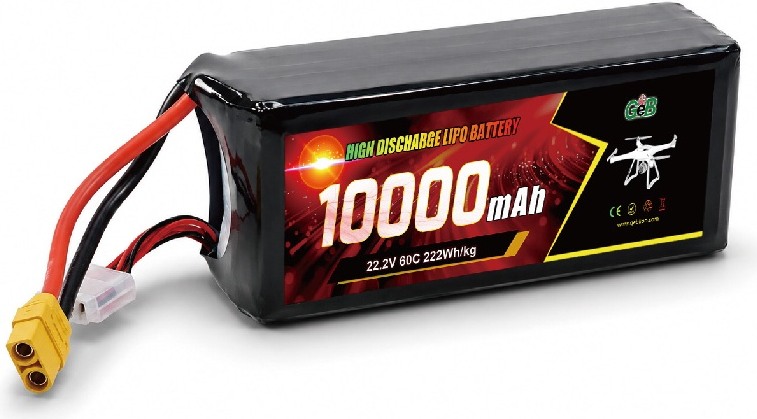

10000 mAh High-Discharge LiPo
- Model
- 22.2V 60C LiPo Battery
- Capacity
- 10000mAh
- Power
- 222Wh
- Plug
- XT90 Plug
- Weight
- 1285g
- Size
- 57*60*165mm

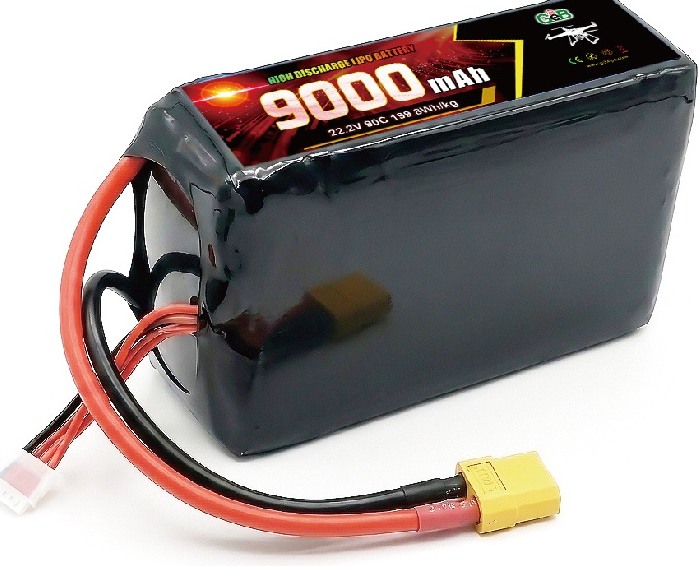

9000 mAh High-Discharge LiPo
- Model
- 22.2V 90C LiPo Battery
- Capacity
- 9000mAh
- Power
- 199.8Wh
- Plug
- XT60 Plug
- Weight
- 1239g
- Size
- 92*43*137mm

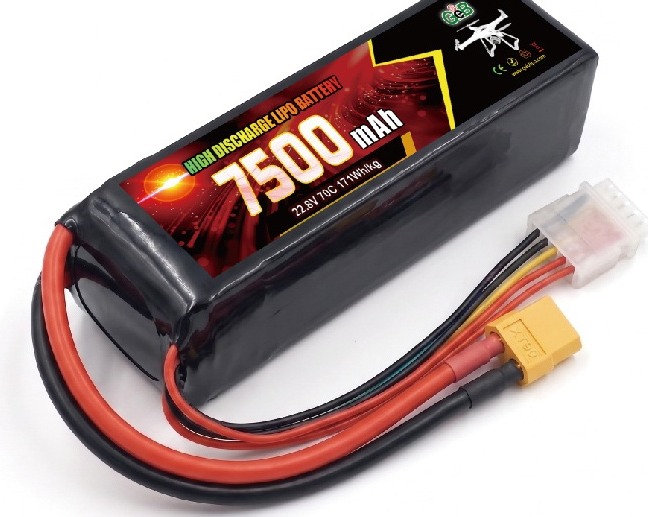

7500 mAh High-Discharge LiPo
- Model
- 22.8V 70C HV LiPo Battery
- Capacity
- 7500mAh
- Power
- 171Wh
- Plug
- XT60 Plug
- Weight
- 804g
- Size
- 60*43*139mm

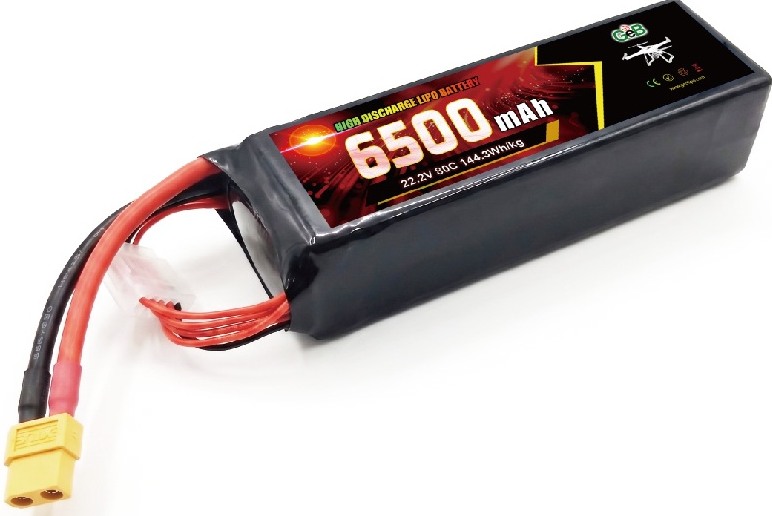

6500 mAh High-Discharge LiPo
- Model
- 22.2V 80C LiPo Battery
- Capacity
- 6500mAh
- Power
- 144.3Wh
- Plug
- XT60 Plug
- Weight
- 840g
- Size
- 52*47.5*156mm

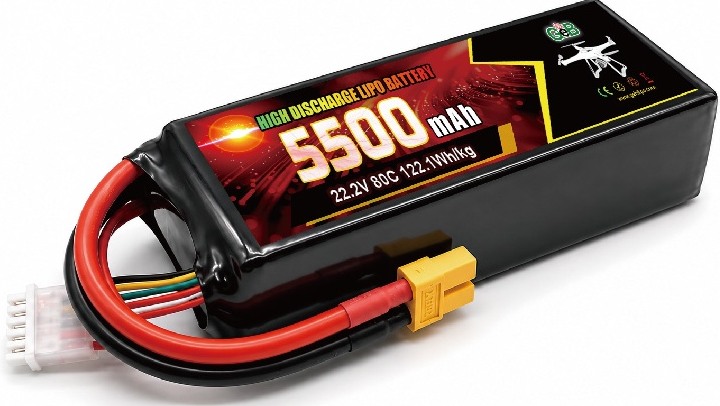

5500 mAh High-Discharge LiPo
- Model
- 22.2V 80C LiPo Battery
- Capacity
- 5500mAh
- Power
- 122.1Wh
- Plug
- XT60 Plug
- Weight
- 726g
- Size
- 55*44*139mm

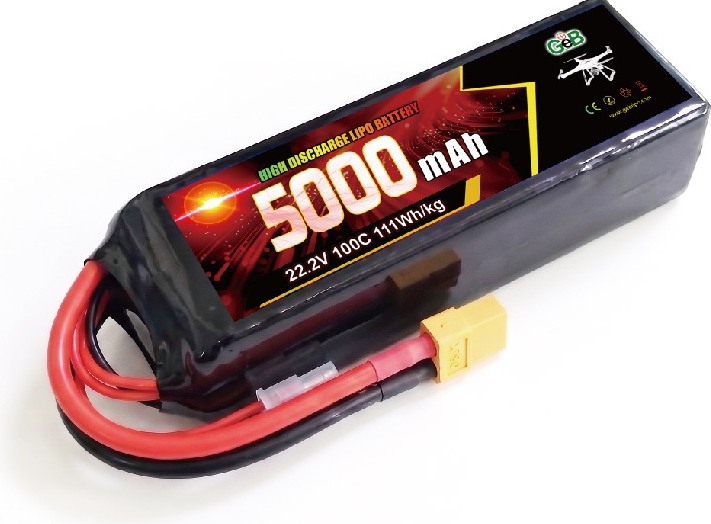

5000 mAh High-Discharge LiPo
- Model
- 22.2V 100C LiPo Battery
- Capacity
- 5000mAh
- Power
- 111Wh
- Plug
- XT60 Plug
- Weight
- 722g
- Size
- 43*48*156mm
Cell Catalog
Battery Cell Model List
High Energy Density Semi-Solid-State Battery Cell Series
| Model | Capacity | Energy Density | Voltage | C-rate | Weight |
|---|---|---|---|---|---|
| MIO10787191 | 36000mAh | 350Wh/kg | 3.7V | 3C | ≤384g |
| MIO8540140 | 14000mAh | 500Wh/kg | 3.8V | 3C | ≤113g |
| MIO7540140 | 12000mAh | 500Wh/kg | 3.8V | 3C | ≤101g |
| MIO8543126 | 10800mAh | 370Wh/kg | 3.8V | 3C | ≤110g |
| MIO5040140 | 6000mAh | 350Wh/kg | 3.6V | 3C | ≤67g |
| MIO8337109 | 5000mAh | 270Wh/kg | 3.7V | 3C | ≤69g |
| MIO706074 | 5000mAh | 300Wh/kg | 3.7V | 2C | ≤62g |
| MIO706070 | 4000mAh | 300Wh/kg | 3.7V | 2C | ≤62g |
| MIO883360 | 2450mAh | 304Wh/kg | 3.8V | 5C | ≤31g |
| MIO775657 | 3900mAh | 300Wh/kg | 3.8V | 2C | ≤56g |
| MIO883360 | 3000mAh | 300Wh/kg | 3.7V | 5C | ≤31g |
| MIO584459 | 2100mAh | 270Wh/kg | 3.7V | 2C | ≤30g |
| MIO654678 | 3000mAh | 280Wh/kg | 3.7V | 2C | ≤49g |
| MIO586080 | 5000mAh | 300Wh/kg | 3.7V | 3C | ≤62g |
| MIO133436 | 2000mAh | 275Wh/kg | 3.7V | 3C | ≤32g |
| MIO903265 | 2000mAh | 280Wh/kg | 3.7V | 3C | ≤40g |
High-Rate Battery Cell Model List
| Model | Capacity | Cont. Disc. | Max. Pulse | Voltage | Weight |
|---|---|---|---|---|---|
| MIO1048160 | 10000mAh | 25C | 50C | 3.7V | ≤173g |
| MIO1148117 | 9000mAh | 15C | 25C | 3.7V | ≤142g |
| MIO8059156 | 8000mAh | 35C | 60C | 3.7V | ≤175g |
| MIO1143125 | 6000mAh | 35C | 70C | 3.7V | ≤128g |
| MIO5643126 | 4500mAh | 35C | 70C | 3.8V | ≤71g |
| MIO7052130 | 6000mAh | 25C | 40C | 3.7V | ≤102g |
| MIO104596 | 5200mAh | 15C | 25C | 3.7V | ≤98g |
| MIO5943126 | 4750mAh | 25C | 50C | 3.8V | ≤75g |
| MIO904678 | 4450mAh | 25C | 50C | 3.7V | ≤80g |
| MIO8043125 | 4000mAh | 45C | 70C | 3.7V | ≤88g |
| MIO883485 | 3000mAh | 25C | 50C | 3.7V | ≤58g |
| MIO904080 | 2500mAh | 30C | 60C | 3.7V | ≤59g |
| MIO804483 | 4000mAh | 15C | 15C | 3.7V | ≤68g |
| MIO803495 | 2200mAh | 45C | 70C | 3.7V | ≤54g |
| MIO753485 | 2000mAh | 30C | 70C | 3.7V | ≤44g |
| MIO5037125 | 1800mAh | 45C | 70C | 3.7V | ≤44g |
| MIO653495 | 1800mAh | 120C | 150C | 3.7V | ≤47g |
| MIO703868 | 1550mAh | 100C | 120C | 3.7V | ≤40g |
Process
Engineering & Testing
- 01
Pulse Load
150C pulse-discharge profiling.
- 02
Thermal Imaging
IR scan under maximum continuous draw.
- 03
Nail Penetration
Single-cell puncture containment.
- 04
Telemetry Validation
CAN/I²C accuracy across the full SoC range.
Questions
FAQ
How long does the 150C pulse rating last?
The pulse rating is specified for bursts up to 10 seconds; continuous draw is rated separately at 80C. We tune both to your duty cycle.
Can the BMS talk to my flight controller?
Yes — we expose per-cell voltage, pack temperature and current over CAN or I²C, with a register map matched to your autopilot.
What about transport of high-energy packs?
All packs are UN38.3 certified and shipped at storage SoC with hazmat-compliant documentation.
Custom S-count and connectors?
We build 4S–12S configurations with XT90, AS150 or your specified connector and lead lengths.
